Renewable Energy Control Centre (CECRE)

A pioneering control center worldwide dedicated exclusively to renewables, Cecre maximizes the safe integration of renewable energy generation into the Spanish electricity system.

Worldwide Pioneer

The Renewable Energy Control Centre (Cecre), a pioneering centre and the first to be dedicated exclusively to the supervision and control of clean technologies, was set up in 2006.

Thanks to Cecre, Spain is now a world leader in the safe integration of renewable energy, maintaining high levels of electricity supply quality. Cecre is integrated into the Electricity Control Centre (Cecoel) and manages renewable energy production in real time, a highly complex task due to the high variability of these sources and their geographical dispersion.

An International Benchmark Centre

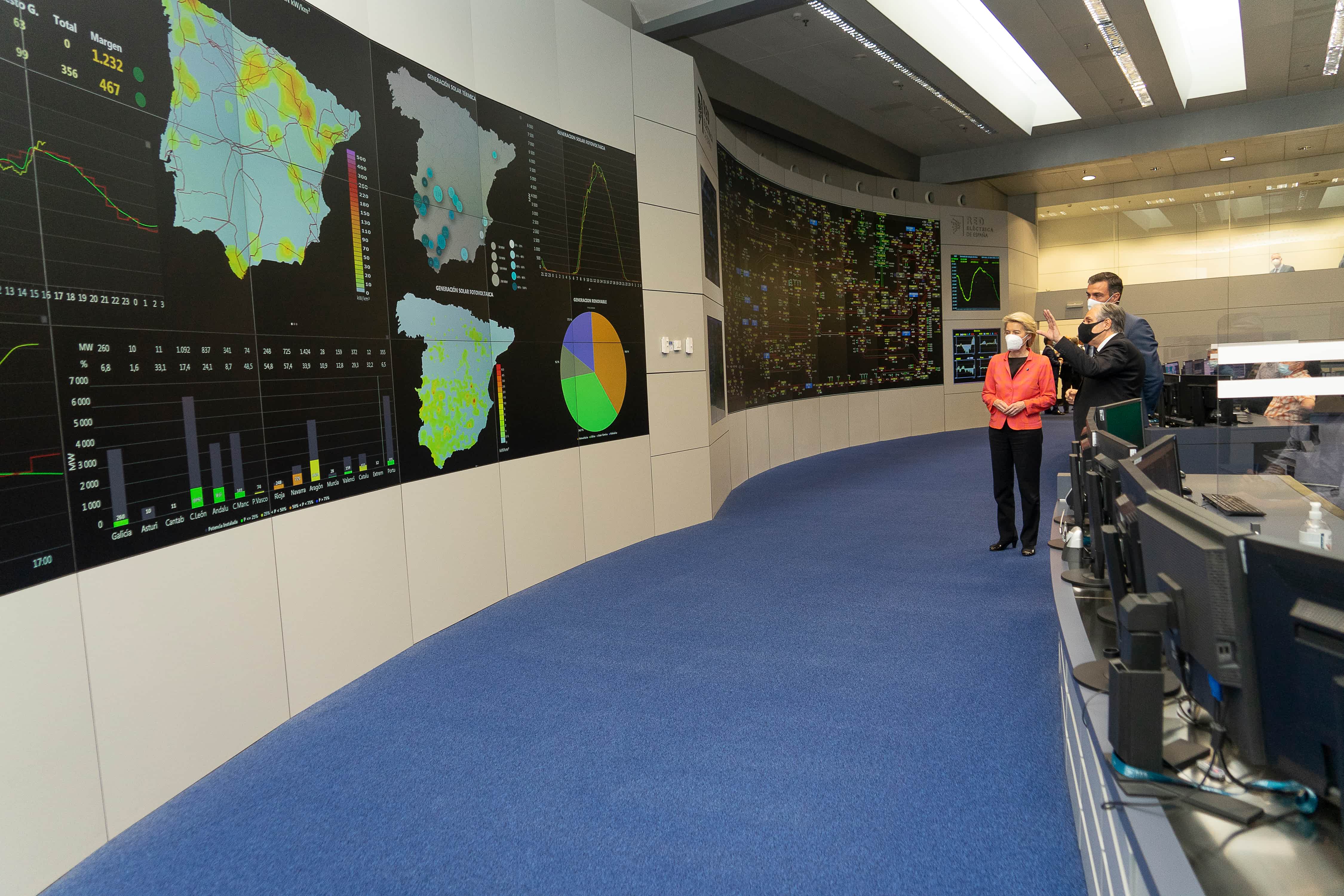

In over 15 years of operation, the Cecre has established itself as a benchmark control centre at international level and has received visits from more than 50 delegations from all over the world. In 2021, it was visited by the President of the European Commission, Ursula von der Leyen, together with the President of the Spanish Government, Pedro Sánchez.

Cecre in Figures

years in operation

4,000

renewable energy facilities monitored in real time

Minimum power of the facilities monitored and controlled by Cecre

How Cecre Works

The Cecre monitors and controls the production of renewable energy generation facilities or groups in order to guarantee the required levels of supply quality and the correct balance between production and consumption.

This information means that it can carry out a real-time analysis of the state of the system and foresee the necessary operational measures to ensure that the system remains safe at all times.

To do this, it performs two functions in real time:

Observability

Of renewable production facilities with an installed generation capacity of over 1 MW by means of telemetry data, which it uses maintain the balance between generation and demand.

Controllability

Of facilities with an installed generation capacity of more than 5 MW. In this way, it can send commands to regulate their output according to the availability of natural resources and the demand of the system.

Communication with Cecre

The strong development of installed renewable generation capacity in the electricity system requires a secure and efficient dialogue between Red Eléctrica and the producers, as well as their allocation to the Generation Control Centres (CCG).

To achieve this communication, the CCGs must be adequately connected to Red Eléctrica's control centre, have sufficient capacity for control, command and monitoring of the generation assigned to them, and their human resources must be appropriately trained to ensure secure communications with Red Eléctrica and its 24/7 operation.

Especificación técnica: enlaces para el intercambio de información en tiempo real con el OS (PDF - 1.23 Mb)

Consulta el listado de centros de control habilitados por el operador del sistema actualizado a fecha 30 de agosto de 2024 (PDF - 185.5 Kb)

Plantilla de identificadores de telemedidas (XLSX - 237.62 Kb)

Production Control Tests

See our page on Regulations, guidelines and other documentation(Available only in Spanish)

Are you a CCG and need more information?

We are here to help you!

Read the regulations for control centres here

Access our Customer Services Portal

Renewable Energy in the Spanish Electricity System

Our interest in renewable energy generation and our commitment to serve as a benchmark for electricity statistics in Spain has prompted us, for the seventh consecutive year, to present this report presenting the performance of renewable energy in Spain in 2022, as well as how it has evolved over recent years.

Access the Report
